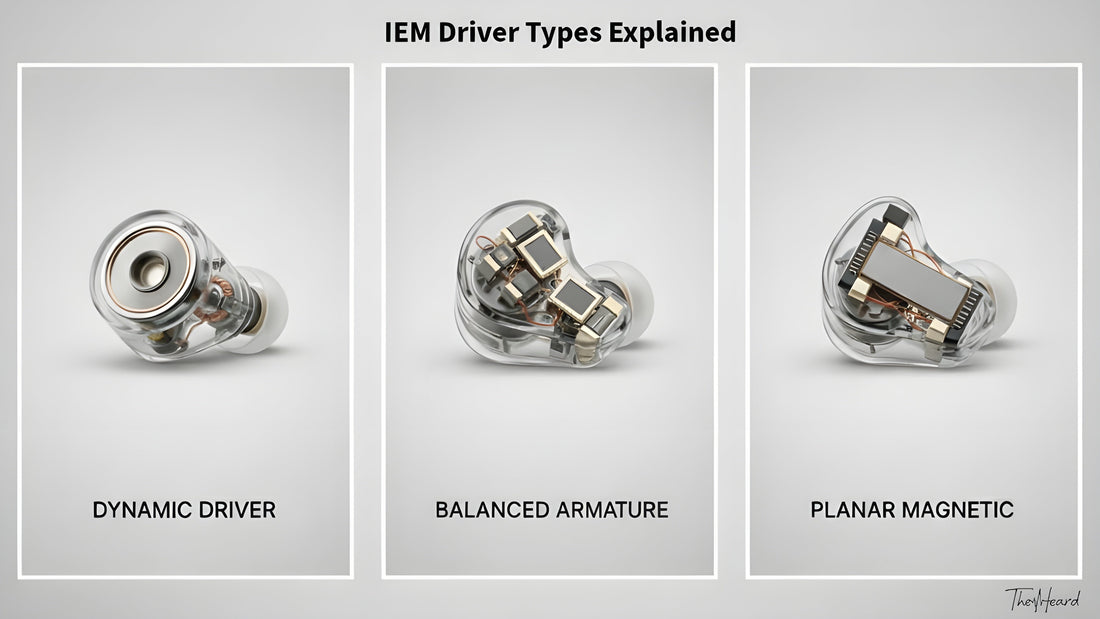

Visual comparison of three IEM driver types: Dynamic Driver, Balanced Armature, and Planar Magnetic.

Complete Analysis: Choosing Your Perfect IEM Driver Type (DD vs. BA vs. Planar)

The Ultimate Guide to Understanding What Powers Your In-Ear Monitors



When you invest in a premium In-Ear Monitor (IEM), you aren't just buying an earbud; you are investing in sophisticated audio engineering. At the heart of that engineering is the driver—the tiny speaker that generates the sound. The type of driver is the single biggest factor determining an IEM's sound signature, stage size, and bass response.

TheHeard breaks down the four main driver technologies that define today’s high-fidelity listening experience.



The Four Cornerstones of IEM Sound



Before diving into the technical details, here are the four driver types that currently dominate the market:

  1. Dynamic Driver (DD): The traditional and most common.
  2. Balanced Armature (BA): Small, precise, and highly efficient.
  3. Planar Magnetic Driver (Planar): Known for speed and expansive soundstage.
  4. Hybrid: A combination of two or more different driver types.



1. Dynamic Driver (DD): The Warm Foundation



The Dynamic Driver operates like a miniature traditional speaker. It uses a voice coil attached to a diaphragm (cone) that moves back and forth when an electrical current passes through it.

Diagram showing the internal structure of an IEM Dynamic Driver, featuring the diaphragm and voice coil. Sheets로 내보내기
Characteristics Pros Cons
Sound Profile Warm, natural, and powerful bass. Excellent low-frequency extension and impact. Can be slower and less precise in transients compared to BA drivers.
Best For Deep, rumbling bass (Sub-bass), natural timbre, and warm tonality (e.g., Hip-Hop, Pop, Rock). Requires venting, which can lead to sound leakage.
Use Case Most common driver in budget and mid-range IEMs, often used as the dedicated bass driver in multi-driver setups.



2. Balanced Armature (BA): The Detail Master



The Balanced Armature driver is significantly smaller than the DD. It uses an armature balanced between two magnets to vibrate a small reed, transferring sound to the eardrum. Because of their size and precision, IEMs often house multiple BA drivers to cover different frequency ranges (e.g., one for treble, one for mids).

Technical diagram illustrating the small, precise internal structure of a Balanced Armature (BA) driver.
Characteristics Pros Cons
Sound Profile Highly detailed, fast, and precise. Excellent clarity and definition in the mid and high frequencies. Can sound metallic or artificial in the bass range if not tuned correctly.
Best For Vocal clarity, complex musical passages (e.g., Jazz, Classical, Monitoring). Requires careful tuning to avoid "peakiness" in the high frequencies.
Use Case Essential for professional in-ear monitors and multi-driver audiophile setups where space and accuracy are key.



3. Planar Magnetic Driver (Planar): The Spatial Specialist



Planar Magnetic technology uses a very thin, flat diaphragm (like a membrane) suspended between two magnet arrays. The entire surface vibrates uniformly, resulting in extremely fast and controlled sound.

Cutaway diagram detailing the structure of a Planar Magnetic driver with its thin diaphragm and magnet arrays.
Characteristics Pros Cons
Sound Profile Exceptional soundstage width and depth, superior speed (transient response), and a very natural, open sound. Requires more power (higher impedance) than BA or DD, often demanding a dedicated amplifier.
Best For Atmospheric and spatial music, detailed imaging, and natural frequency response (e.g., Orchestral, Ambient, Complex Electronic). Can be slightly more expensive and physically larger than other types.
Use Case Gaining popularity in high-end IEMs for listeners prioritizing a vast, realistic soundscape.



4. Hybrid Systems: The Best of Both Worlds



A Hybrid system uses a Dynamic Driver for the low-end frequencies and one or more Balanced Armature drivers for the mid-range and high frequencies. This approach leverages the strengths of each technology.

Visual schematic of a Hybrid IEM system showing both the Dynamic Driver (DD) and Balanced Armature (BA) units combined.
Characteristics Pros Cons
Sound Profile Combines the impactful bass of a DD with the detail and speed of BA drivers. Offers a rich, full-spectrum sound. Can be challenging to tune, sometimes resulting in a "cohesion" issue where the DD and BA sounds don't blend seamlessly.
Best For All-genre listening, especially complex modern music that requires both deep bass and clear vocals (e.g., Pop, R&B, EDM). Tuning quality heavily dictates performance.
Use Case Extremely popular in the high-fidelity market for listeners seeking versatile performance without compromise.



Choosing Your Perfect Driver: A Quick Guide from TheHeard



When selecting your next IEM, let your primary listening preference guide your choice:

  • Bass & Warmth is key? Start with a Dynamic Driver (DD).
  • Detail & Clarity are paramount? Look for IEMs with multiple Balanced Armature (BA) drivers.
  • Need an enormous soundstage? Explore Planar Magnetic models.
  • Want versatile performance across all genres? A well-tuned Hybrid system is the ideal balance.

TheHeard curates only the IEMs that master their respective driver technology, ensuring you get the full, intended listening experience. Discover the next level of sound right here at TheHeard.
